【小游戏】用C++结合EasyX制作扫雷2

开头

实现思路和之前一样，加了开始界面和设置功能

目前main.cpp文件的所有代码:

#include<graphics.h>
#include<iostream>
#include<vector>
#include<string>

using namespace std;
//全局变量
MOUSEMSG msg;//全局鼠标信息变量
IMAGE mine, grid, grid_motion, grid_down, flag, flag_motion , mine_other;//所有图像变量
//单个格子大小(单位：像素)，雷数常量，格子布局长宽(单位：格子)，窗口宽度，窗口高度
int grid_size = 40, layout_size = 10, width = 400, height = 400;

int all_num = 0, grid_x = 0, grid_y = 0, mines_num = 10;

//格子类，边长为40像素的正方形
class Grid {
public:
    bool is_mine, is_click = false, is_flag = false;
    int num = 0;
    IMAGE mine;
    int x1, x2, y1, y2;//格子的四个角顶点的位置
    int i, j;
    int grids[8][2] = { 0 };

    void init(bool is_mine, int x, int y, int i, int j) {
        //初始化
        this->is_mine = is_mine;
        x1 = x; x2 = x + grid_size;
        y1 = y; y2 = y + grid_size;
        this->i = i; this->j = j;
        //绘制
        change(grid);
        //判断自己的位置(grids二维数组记录周围8个格子的行和列)
        if (i == 0 && j == 0)
        {
            //左上角
            int grids[3][2] = { {0,1},{1,0},{1,1}};
            for (int a = 0; a < 3; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (i == layout_size - 1 && j == layout_size - 1)
        {
            //右下角
            int grids[3][2] = { {layout_size - 1,layout_size - 2},{layout_size - 2,layout_size - 1},{layout_size - 2,layout_size - 2}};
            for (int a = 0; a < 3; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (i == 0 && j == layout_size - 1)
        {
            //右上角
            int grids[3][2] = { {0,layout_size - 2},{1,layout_size - 1},{1,layout_size - 2}};
            for (int a = 0; a < 3; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (i == layout_size - 1 && j == 0){
            //左下角
            int grids[3][2] = { {layout_size - 1,layout_size - 2},{layout_size - 2,layout_size - 2},{layout_size-2,layout_size-1} };
            for (int a = 0; a < 3; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (i == 0 && j > 0 && j < layout_size - 1)
        {
            //上-边
            int grids[8][2] = { {0,j - 1},{0,j + 1},{1,j - 1},{1,j},{1,j + 1},{2,j - 1},{2,j},{2,j + 1} };
            for (int a = 0; a < 8; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (i == layout_size - 1 && j > 0 && j < layout_size - 1)
        {
            //下-边
            int grids[8][2] = { {layout_size - 1,j - 1},{layout_size - 1,j + 1} ,{layout_size - 2,j - 1} ,{layout_size - 2,j} ,{layout_size - 2,j + 1} ,{layout_size - 3,j - 1} ,{layout_size - 3,j} ,{layout_size - 3,j + 1} };
            for (int a = 0; a < 8; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (j == 0 && i > 0 && i < layout_size - 1)
        {
            //左-边
            int grids[8][2] = { {i - 1,0} ,{i - 1,1} ,{i - 1,2} ,{i,1} ,{i,2} ,{i + 1,0} ,{i + 1,1} ,{i + 1,2} };
            for (int a = 0; a < 8; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else if (j == layout_size - 1 && i > 0 && i < layout_size - 1)
        {
            //右-边
            int grids[8][2] = { {i - 1,layout_size - 1} ,{i - 1,layout_size - 2} ,{i - 1,layout_size - 3} ,{i,layout_size - 2} ,{i,layout_size - 3} ,{i + 1,layout_size - 1} ,{i + 1,layout_size - 2} ,{i + 1,layout_size - 3} };
            for (int a = 0; a < 8; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }

        else
        {
            //以此格子为中心
            int grids[8][2] = { {i - 1,j - 1} ,{i - 1,j} ,{i - 1,j + 1} ,{i,j - 1} ,{i,j + 1} ,{i + 1,j - 1} ,{i + 1,j} ,{i + 1,j + 1} };
            for (int a = 0; a < 8; a++) {
                this->grids[a][0] = grids[a][0];
                this->grids[a][1] = grids[a][1];
            }
        }
    }

    void change(IMAGE image) {
        putimage(x1, y1, &image);
    }

    void show_num() {
        if (num == 0)
            return;
        else if (num == 1)
            settextcolor(BLUE);
        else if (num == 2)
            settextcolor(GREEN);
        else if (num == 3)
            settextcolor(YELLOW);
        else if (num == 4)
            settextcolor(RGB(255, 135, 35));
        else
            settextcolor(RED);
        setbkmode(TRANSPARENT);
        settextstyle(45, 0, _T("Consolas"));
        char info = num + 48;
        outtextxy(x1 + 6, y1 - 3, _T(info));
    }

    void find_0(vector<vector<Grid>> &layout) {
        for (int a = 0; a < 8; a++) {//遍历grids（周围格子）
            int i = grids[a][0], j = grids[a][1];
            if (layout[i][j].num == 0 && layout[i][j].is_click == false && layout[i][j].is_mine == false) {
                //模拟点击操作
                layout[i][j].is_flag = false;
                layout[i][j].change(grid_down);
                layout[i][j].is_click = true;
                all_num++;
                layout[i][j].find_0(layout);
            }
        }
    }
};

class Button {
public:
    int x, y, width, height;
    const char* text="NULL";

    void show(const char* text, int x, int y, int width, int height, COLORREF color1 = WHITE)
    {
        this->x = x; this->y = y;
        this->width = width; this->height = height;
        this->text = text;

        setlinecolor(color1);//设置框边颜色
        setbkmode(TRANSPARENT);//设置字体背景透明
        setfillcolor(color1);//设置填充颜色
        fillroundrect(x, y, x + width, y + height, 10, 10);//画一个按钮框

        settextcolor(BLACK);
        settextstyle(40, 0, "黑体");
        int tx = x + (width - textwidth(text)) / 2;
        int ty = y + (height - textheight(text)) / 2;
        outtextxy(tx, ty, text);
    }

    void change(COLORREF color2=RGB(237, 237, 237)) {
        setlinecolor(color2);//设置框边颜色
        setfillcolor(color2);//设置填充颜色
        fillroundrect(x, y, x + width, y + height, 10, 10);//画一个按钮框

        settextcolor(BLACK);
        settextstyle(40, 0, "黑体");
        int tx = x + (width - textwidth(text)) / 2;
        int ty = y + (height - textheight(text)) / 2;
        outtextxy(tx, ty, text);
    }
};

void settings() {
    int temp=0;
    cout << "设置格子大小(单位：像素)" << endl;
    cin >> grid_size;
    cout << "设置雷盘边长(单位：格子)" << endl;
    cin >> layout_size;
    width = height = layout_size * grid_size;
    cout << width << ' ' << height << endl;
    cout << "设置雷数" << endl;
    cin >> temp;
    if (temp >= layout_size * layout_size)
        cout << "设置的雷太多了" << endl;
    else {
        mines_num = temp;
        cout << "OK 开始！" << endl;
        return;
    }
}

void start() {
    //程序初始化
    initgraph(width, height);
    setbkcolor(BLACK);
    cleardevice();
    setbkcolor(WHITE);
    //绘制设置按钮

    Button btn1;
    btn1.show("设置", 150, 100, 100, 50);
    Button btn2;
    btn2.show("开始", 150, 200, 100, 50);
    //死循环
    while (true) {
        ExMessage msg = getmessage(EX_MOUSE);

        if (msg.message == WM_LBUTTONDOWN) {
            if (msg.x >= btn1.x && msg.x <= btn1.x + btn1.width && msg.y >= btn1.y && msg.y <= btn1.y + btn1.height) {
                btn1.change();
                settings();
                cleardevice();
                initgraph(width, height);
                return;
            }

            else if (msg.x >= btn2.x && msg.x <= btn2.x + btn2.width && msg.y >= btn2.y && msg.y <= btn2.y + btn2.height) {
                btn2.change();
                cleardevice();
                return;
            }
        }
    }
}

int main() {
    //程序初始化
    start();
    //加载图像
    loadimage(&mine, "images/mine.png", grid_size, grid_size);
    loadimage(&grid, "images/grid.png", grid_size, grid_size);
    loadimage(&grid_motion, "images/grid_motion.png", grid_size, grid_size);
    loadimage(&grid_down, "images/grid_down.png", grid_size, grid_size);
    loadimage(&flag, "images/flag.png", grid_size, grid_size);
    loadimage(&flag_motion, "images/flag_motion.png", grid_size, grid_size);
    loadimage(&mine_other, "images/mine_other.png", grid_size, grid_size);
    //布雷
    vector<vector<Grid>> layout(layout_size, vector<Grid>(layout_size));//布局，用二维数组，如果是1就有雷，0则没有

    srand(time(nullptr));
    //初始化
    for (int i = 0; i < layout_size; i++) {
        for (int j = 0; j < layout_size; j++) {
            layout[i][j].init(false, grid_x, grid_y, i, j);
            grid_x += grid_size;
        }
        grid_y += grid_size;
        grid_x = 0;
    }
    //随机布雷实现
    int x = 0, y = 0, count = 0;
    for (count = 0; count < mines_num;){
        x = 1 + rand() % layout_size-1;
        y = 1 + rand() % layout_size-1;
        if (layout[x][y].is_mine == false){
            layout[x][y].is_mine = true;
            count++;//每次布置好一个雷之后,才会计数
        }
    }

    for (int i = 0; i < layout_size; i++) {
        for (int j = 0; j < layout_size; j++) {
            //每个格子获取周围格子的雷数
            for (int a = 0; a < 8; a++) {
                if (layout[layout[i][j].grids[a][0]][layout[i][j].grids[a][1]].is_mine) {
                    layout[i][j].num++;
                }
            }
        }
    }
    /*调试输出布局
    for (int i = 0; i < layout_size; i++) {
        for (int j = 0; j < layout_size; j++) {
            cout << layout[i][j].is_mine << ' ';
        }
        cout << endl;
    }*/
    //轮询监测鼠标事件
    while (true) {
        //监测鼠标操作
        ExMessage msg = getmessage(EX_MOUSE);

        if (msg.message == WM_LBUTTONDOWN) {
            for (int i = 0; i < layout_size; i++) {
                for (int j = 0; j < layout_size; j++) {
                    //通过点击坐标判断是哪个格子
                    if (msg.x >= layout[i][j].x1 && msg.x <= layout[i][j].x2 && msg.y >= layout[i][j].y1 && msg.y <= layout[i][j].y2) {
                        if (layout[i][j].is_click == false) {//判断是否被点击过
                            layout[i][j].is_flag = false;
                            //如果这个格子是雷
                            if (layout[i][j].is_mine) {
                                layout[i][j].change(mine);
                                //显示提示信息
                                for (int x = 0; x < layout_size; x++) {
                                    for (int y = 0; y < layout_size; y++) {
                                        if (layout[x][y].is_mine && x != i && y != j)
                                            layout[x][y].change(mine_other);
                                    }
                                }
                                cout << "踩雷！即将退出";
                                Sleep(2500); //停顿两秒半
                                //退出程序
                                return 0;
                            }

                            else {
                                layout[i][j].change(grid_down);
                                //显示格子周围的雷数
                                layout[i][j].show_num();
                                //如果是数量是0
                                if (layout[i][j].num == 0)
                                    layout[i][j].find_0(layout);
                            }
                            layout[i][j].is_click = true;
                            all_num++;
                        }
                        //判断未点开的格子数，从而判断输赢
                        if (all_num == layout_size * layout_size - mines_num) {
                            //显示提示信息
                            for (int x = 0; x < layout_size; x++) {
                                for (int y = 0; y < layout_size; y++) {
                                    if (layout[x][y].is_mine && x != i && y != j)
                                        layout[x][y].change(flag);
                                }
                            }
                            cout<<"获胜！即将退出";
                            Sleep(2500); //停顿两秒半
                            //退出
                            return 0;
                        }
                    }
                }
            }
        }

        if (msg.message == WM_MOUSEMOVE) {
            for (int i = 0; i < layout_size; i++) {
                for (int j = 0; j < layout_size; j++) {
                    //通过坐标判断是哪个格子
                    if (msg.x >= layout[i][j].x1 && msg.x <= layout[i][j].x2 && msg.y >= layout[i][j].y1 && msg.y <= layout[i][j].y2) {
                        if (layout[i][j].is_click) {
                            layout[i][j].change(grid_down);
                            layout[i][j].show_num();
                        }
                        else if (layout[i][j].is_click == false && layout[i][j].is_flag == false)
                            layout[i][j].change(grid_motion);
                        else if (layout[i][j].is_click == false && layout[i][j].is_flag == true)
                            layout[i][j].change(flag_motion);
                    }

                    else {
                        if (layout[i][j].is_click) {
                            layout[i][j].change(grid_down);
                            layout[i][j].show_num();
                        }
                        else if (layout[i][j].is_click == false && layout[i][j].is_flag == false)
                            layout[i][j].change(grid);
                        else if (layout[i][j].is_click == false && layout[i][j].is_flag)
                            layout[i][j].change(flag);
                    }

                }
            }
        }

        else if (msg.message == WM_RBUTTONDOWN) {
            for (int i = 0; i < layout_size; i++) {
                for (int j = 0; j < layout_size; j++) {
                    //通过点击坐标判断是哪个格子
                    if (msg.x >= layout[i][j].x1 && msg.x <= layout[i][j].x2 && msg.y >= layout[i][j].y1 && msg.y <= layout[i][j].y2) {
                        //如果已经被标记就取消标记
                        if (layout[i][j].is_flag) {
                            layout[i][j].is_flag = false;
                            layout[i][j].change(grid);
                        }
                        //如果没有被标记就标记上
                        else if (layout[i][j].is_flag == false && layout[i][j].is_click == false) {
                            layout[i][j].is_flag = true;
                            layout[i][j].change(flag);
                        }
                    }
                }
            }
        }
    }

    closegraph();
    return 0;
}

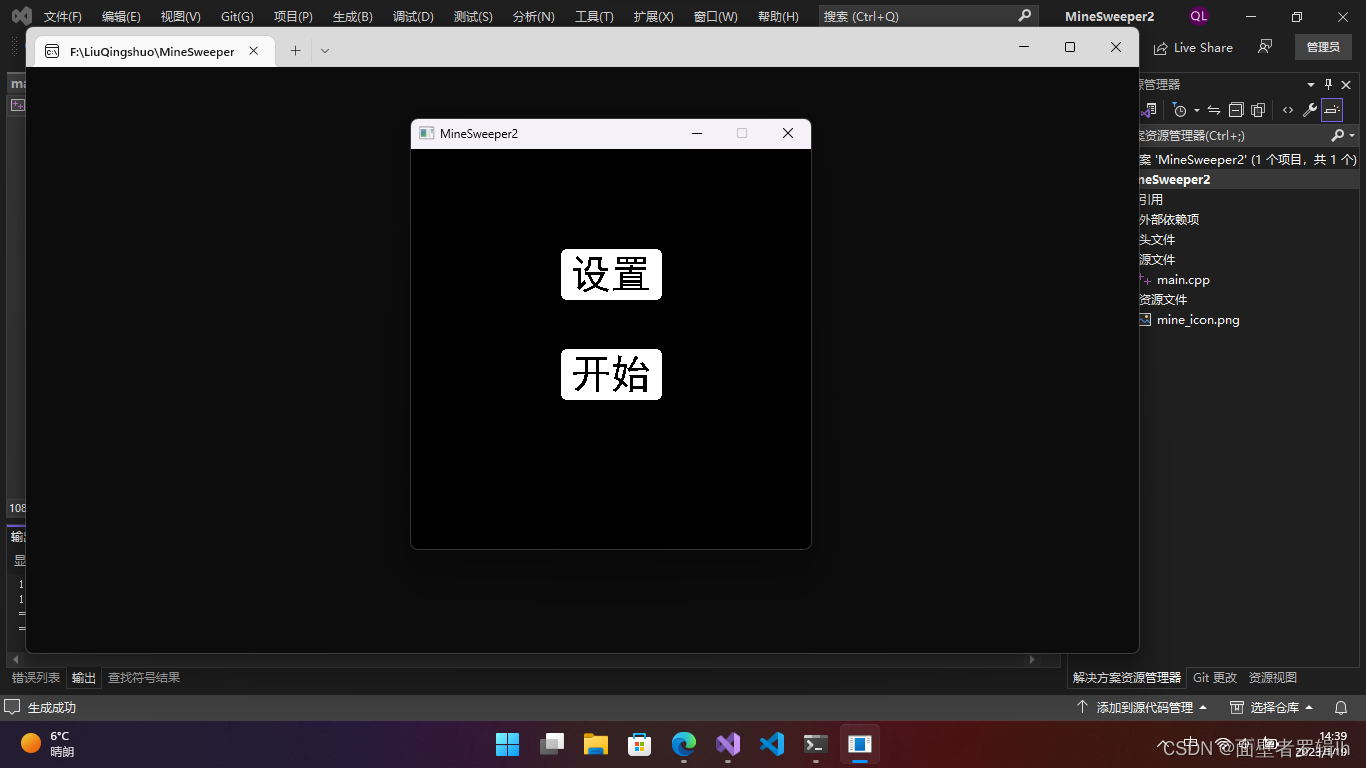

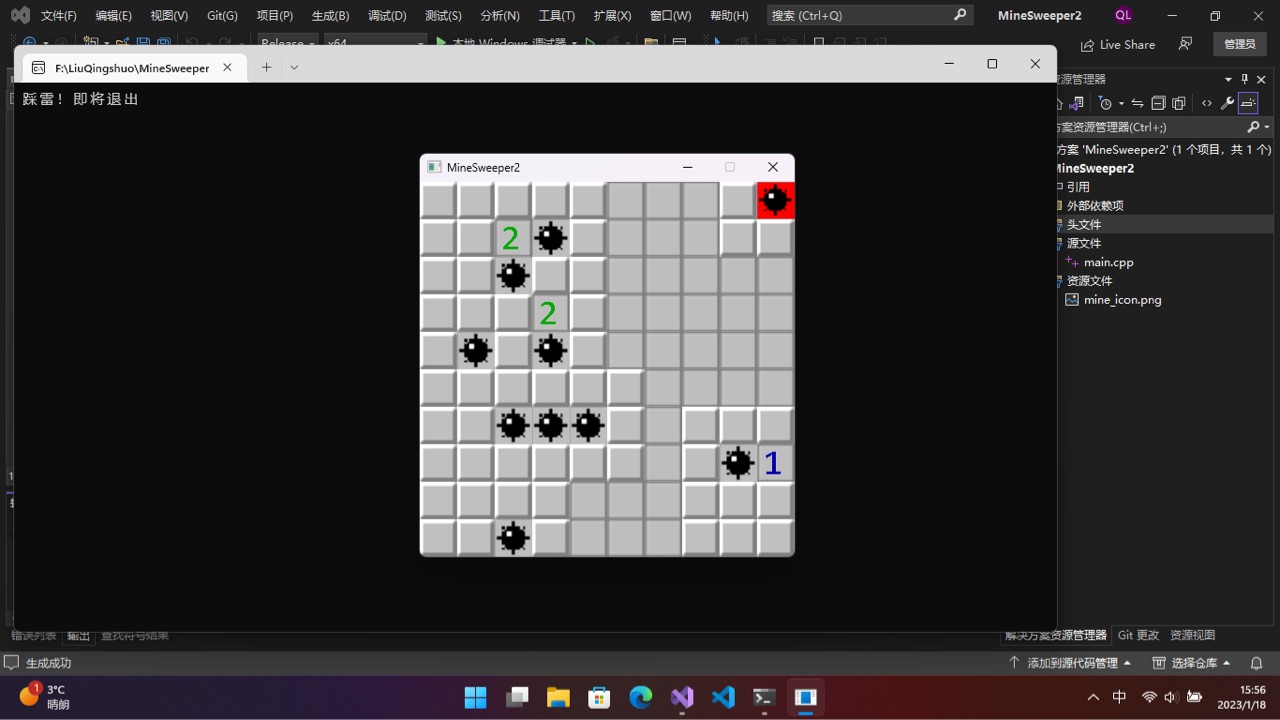

效果图

结尾

已开源到了GitHub（包含图片文件）：clear-sea/MineSweeper(github.com)
